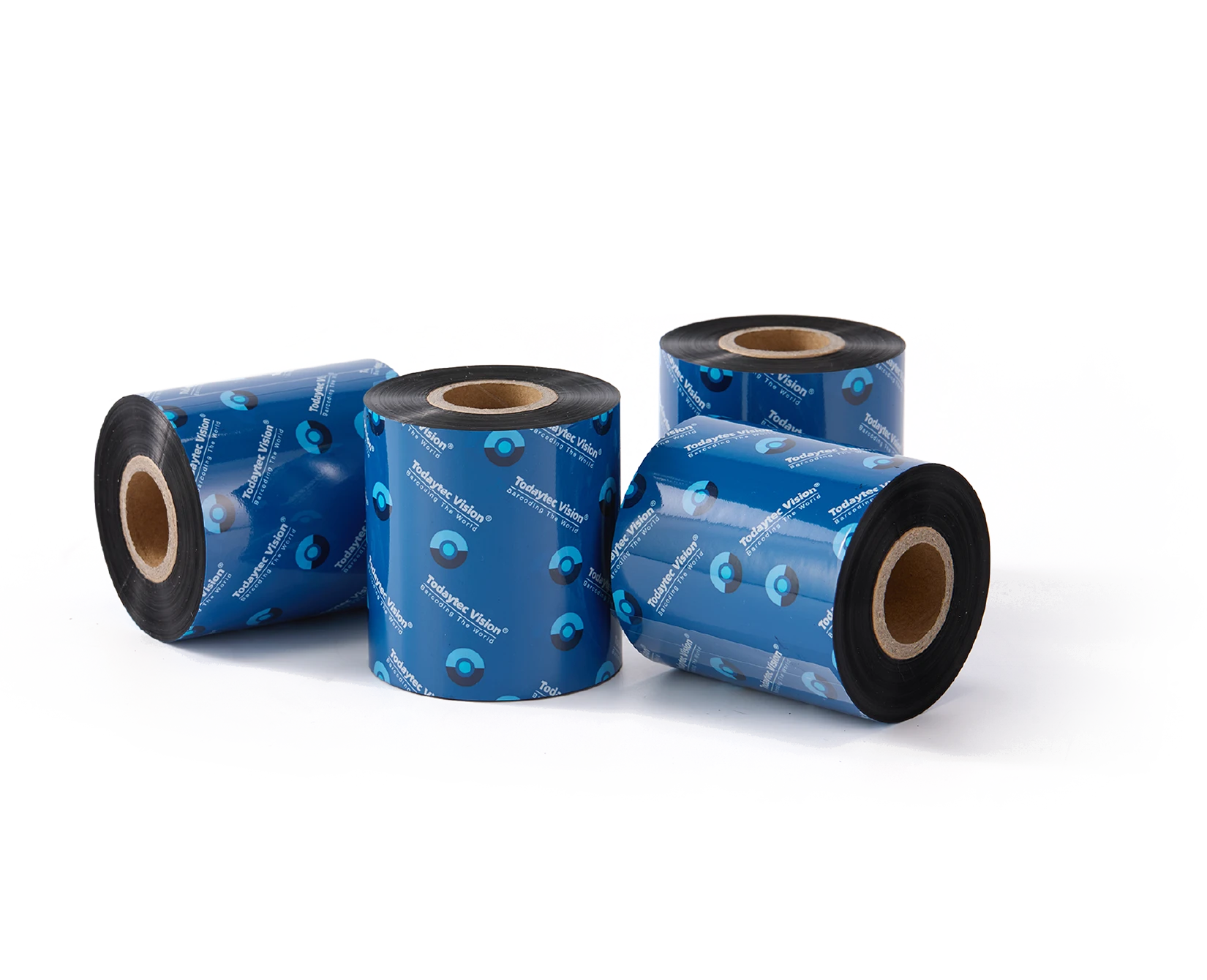

TDM202
High-Performance General Wax-resin ribbon
TDM202 is a general wax-resin ribbon with remarkable printing performance, low printing temperature, high printing blackness, strong scratch resistance and high resolution printing. In addition, it works well in high speed printing. Providing efficient-printing solutions to customers in various fields.
-
High Sensitivity
-
Excellent Scratch Resistance
-
High-precision Printing Performance
-
Superior Substrate Compatibility
Print Quality
-
Blackness0.5 2.5
1.87 ODR -
Sharpness0 100
95 -
0° Barcode0 100
100 -
90° Barcode0 100
85 -
Min. printable character0 6
4 pt -
Graphics0 100
95
Printability
-
Uncoated paperWriting paper, Vellum…
-
Coated paperArt Paper, Art Printing Paper, High Gloss Paper…
-
Synthetic paperSynthetic paper
-
Film labelPP/PET/PE/PVC…
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
-
Braking FluidBosch Dot4 Plus
-
Gasoline92#
-
Alcohol95%
-
Stratch Resistance
-
Rub resistance
- 0
- 0
- 0
- 500
- 500
- 600 400 200
- 200 400 600 次
-
Water resistance testThe printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
-
No significantly faded
-
Low-temperature testThe printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
-
No significantly fallen off
Recommended Application Scenarios
-
Retail Label
-
Pharmaceutical Label
-
Medical Device Label
-
Laboratory Label
-
Household & Personal Care Lebel
-
Home Appliances
-
Product Nameplate
-
Industrial Material
-
Clothing Tag
-
Flower Identification
-
Warehouse Logistics Labels
-
PropertiesPET FilmThickness: 4.5μmRibbonThickness: 6.7±0.3μmInk85±3℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
TDM202
-
T209
-
TDM242
-
TDM238
-
Substrate CompatibilityDurabilityPrinting Temperature
-
