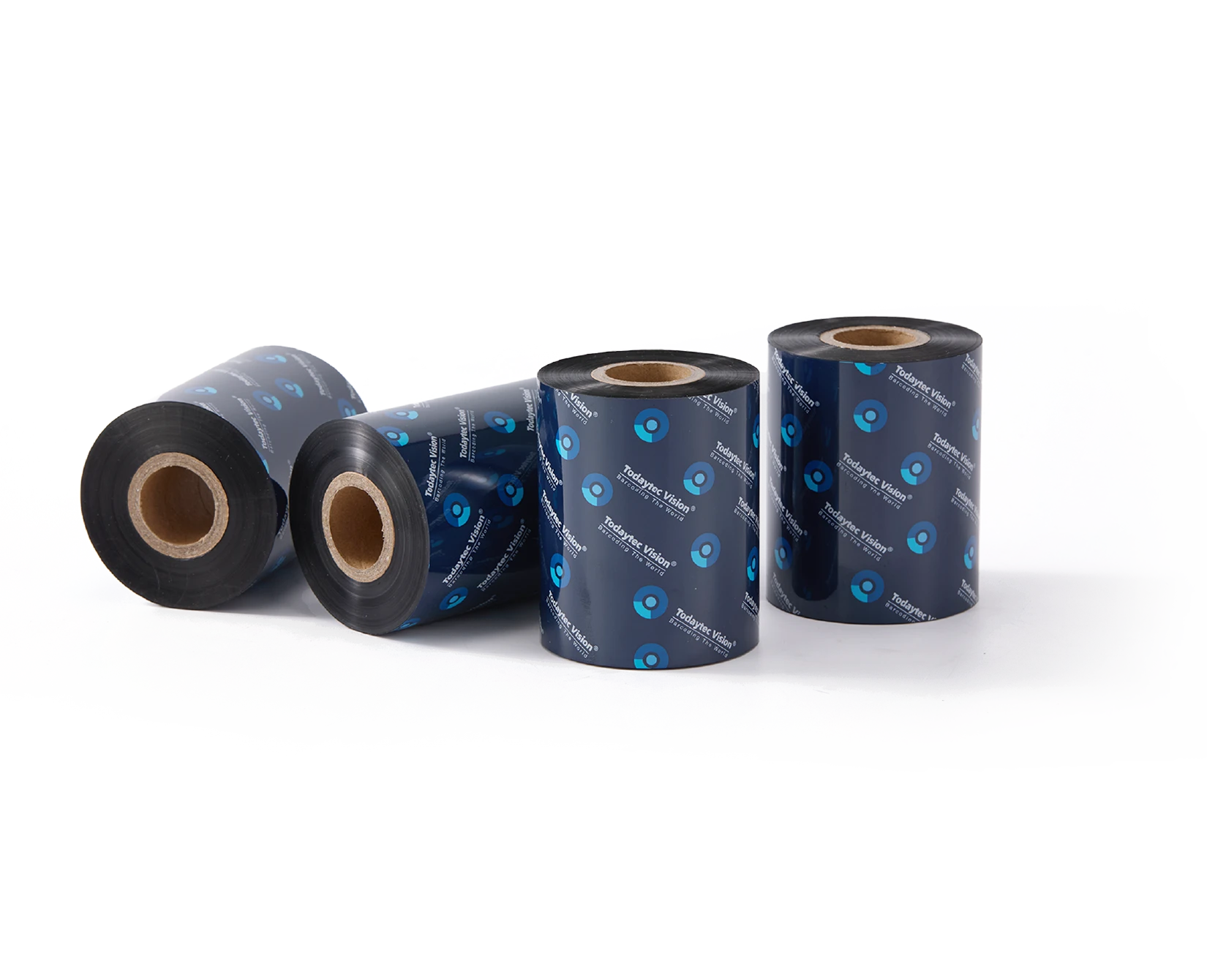

T305
Economical Resin Ribbon
T305, as an economical resin-based ribbon, delivers exceptional value for money. Its outstanding scratch resistance, waterproof and UV-resistant properties, and excellent adaptability enable it to meet the demanding requirements of most industries.
-
Excellent Scratch Resistance
-
Superior Substrate Compatibility
-
Outstanding Printing Quality
Print Quality
-
Blackness0.5 2.5
2.01 ODR -
Sharpness0 100
93 -
0° Barcode0 100
100 -
90° Barcode0 100
90 -
Min. printable character0 6
4 pt -
Graphics0 100
100
Printability
-
Coated paperArt Paper, Art Printing Paper, High Gloss Paper…
-
Synthetic paperSynthetic paper
-
Film labelPP/PET/PE/PVC…
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
-
制动液Bosch Dot4 Plus
-
Gasoline92#
-
Alcohol95%
-
Stratch Resistance
-
Rub resistance
- 20
- 20
- 180
- 1000
- 1000
- 1000 200 100
- 100 200 1000 次
-
Water resistance testThe printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
-
No significantly faded
-
Low-temperature testThe printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
-
No significantly fallen off
-
Certification and Permits
ROHS2.0
REACH
MSDS
Halogen Free -
Same Series Products
Recommended Application Scenarios
-
Freezer Label
-
Hot-Processed Label
-
Pharmaceutical Label
-
Medical Device Label
-
Laboratory Label
-
Household & Personal Care Lebel
-
Home Appliances
-
Electronic Component Identification
-
Product Nameplate
-
Machinery and Equipment
-
Chemical Label
-
Automotive Interior Label
-
Engine Hood Label
-
PropertiesPET FilmThickness: 4.5μmRibbonThickness: 8.1±0.3μmInk93±3℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
T305
-
TDR320
-
TDR330
-
Substrate CompatabilityAlcohol ResistanceGasoline ResistanceSubstrate Compatibility
-
