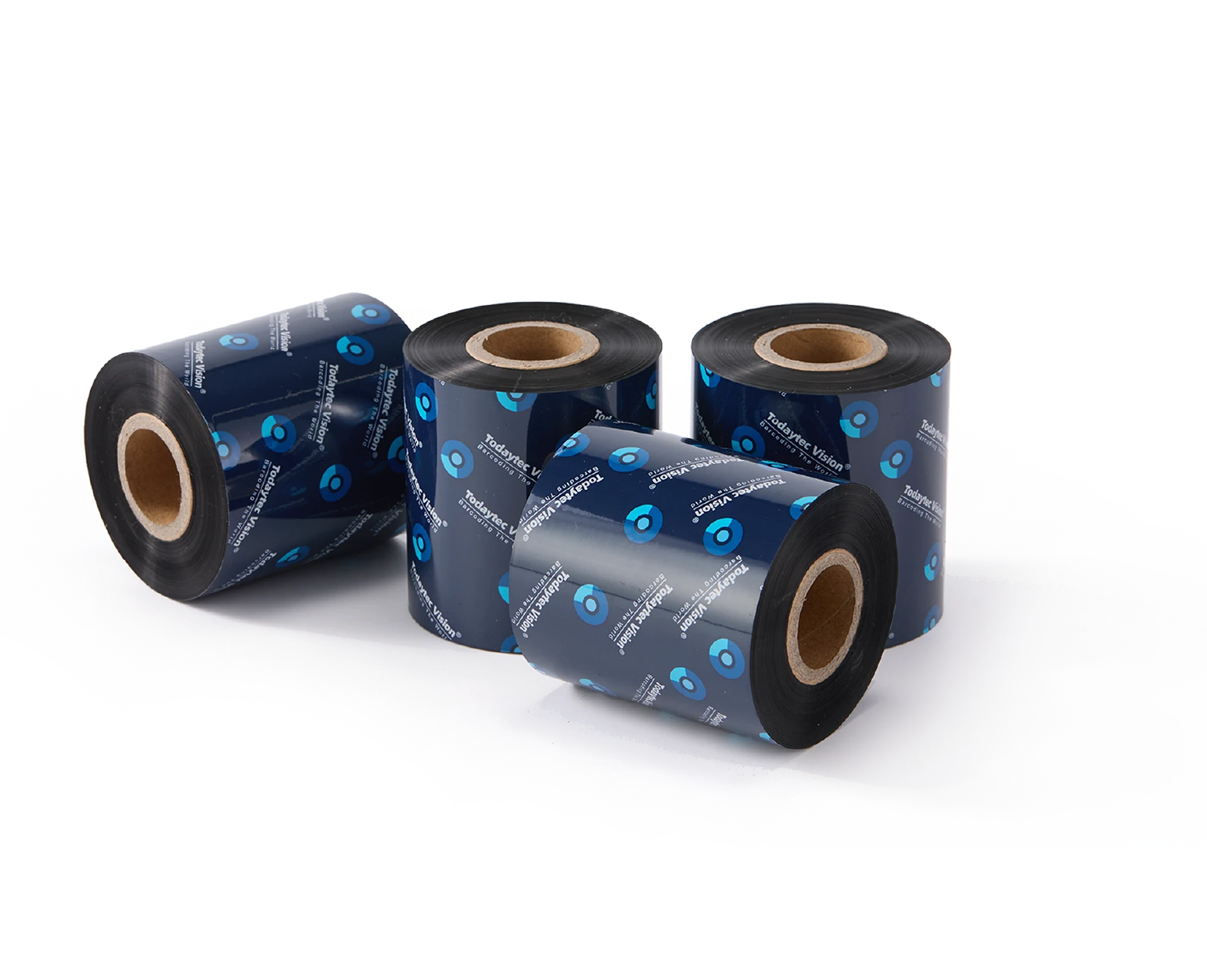

TDR320
All-purpose Economical Resin Ribbon
TDR320, as an economical resin ribbon, can meet demanding requirements in various industries for its superb substrate compatibility (It could be complete transfered on coated paper), relatively strong scratch resistance and exceptionally good water and sunlight resistance.
-
Excellent Printing Performance For Coated Paper
Print Quality
-
Blackness0.5 2.5
1.96 ODR -
Sharpness0 100
95 -
0° Barcode0 100
100 -
90° Barcode0 100
90 -
Min. printable character0 6
4 pt -
Graphics0 100
100
Printability
-
PET
-
Coated paperArt Paper, Art Printing Paper, High Gloss Paper…
-
Synthetic paperSynthetic paper
Sensitivity
-

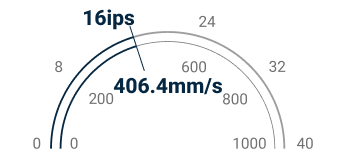

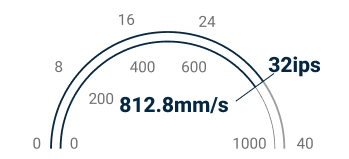

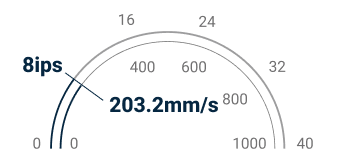

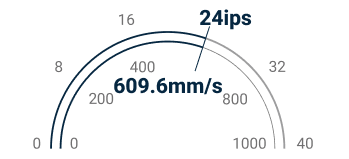

Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
-
Braking FluidBosch Dot4 Plus
-
Gasoline92#
-
Alcohol95%
-
Stratch Resistance
-
Rub resistance
- 30
- 20
- 150
- 1000
- 1000
- 1000 200 50
- 50 200 1000 次
-
Water resistance testThe printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
-
No significantly faded
-
Low-temperature testThe printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
-
No significantly fallen off
Recommended Application Scenarios
-
Freezer Label
-
Hot-Processed Label
-
Pharmaceutical Label
-
Medical Device Label
-
Laboratory Label
-
Household & Personal Care Lebel
-
Home Appliances
-
Electronic Component Identification
-
Product Nameplate
-
Machinery and Equipment
-
Chemical Label
-
Automotive Interior Label
-
Engine Hood Label
-
PropertiesPET FilmThickness: 4.5μmRibbonThickness: 7.8±0.3μmInk98±3℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
TDR320
-
TDR325
-
TDR345
-
Substrate CompatibilityAlcohol ResistanceGasoline Resistance
-
