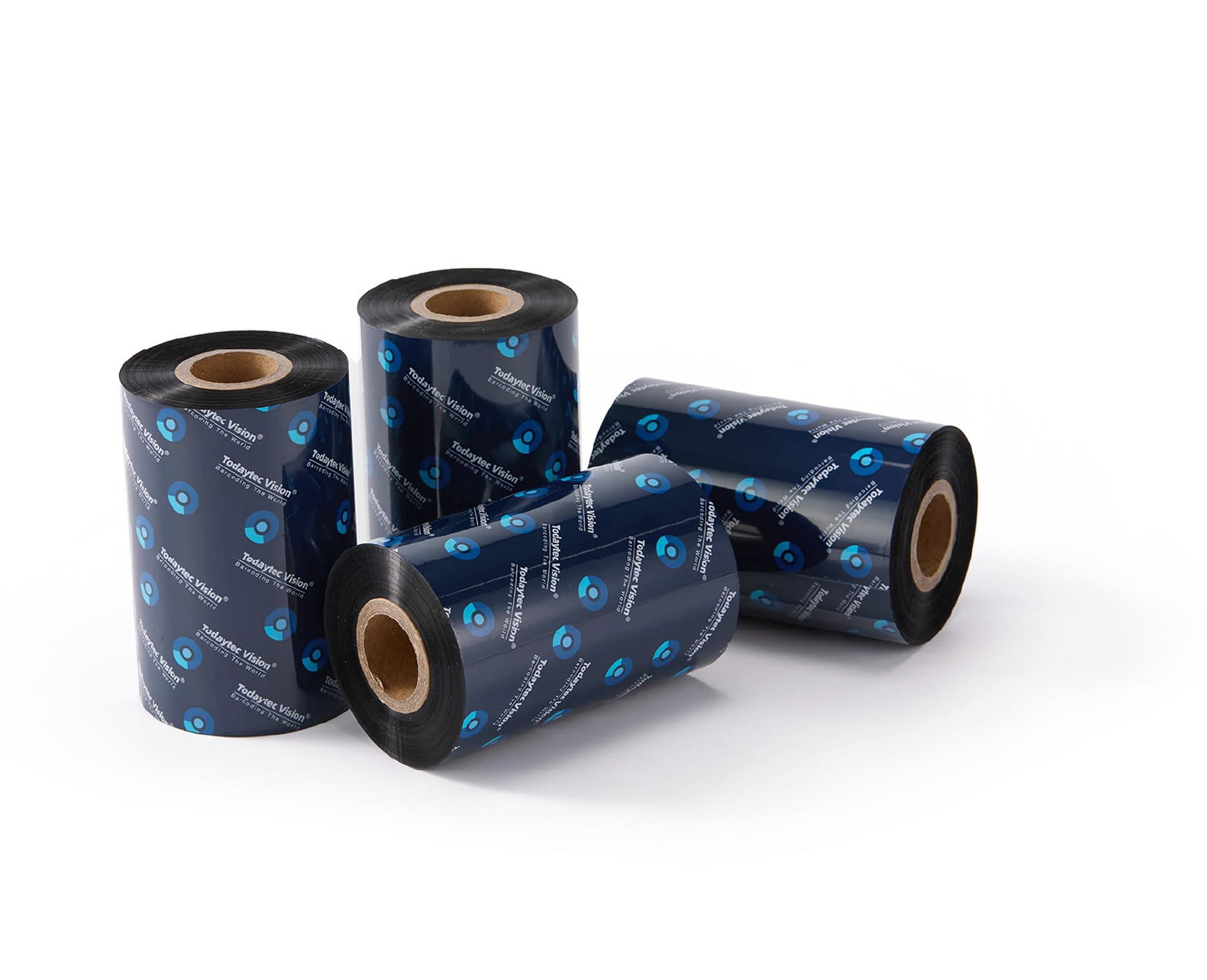

TDR325
Standard Resin Ribbon
TDR325, as a standard resin ribbon, is utilized for its vast substrate compatibility, superior stain and corrosion resistance and high-temperature resistance. It achieves recognition and favor of customers in various industries.
-
Superior Substrate Compatibility
-
Superior Solvent Resistance
-
Outstanding Printing Quality
Print Quality
-
Blackness0.5 2.5
1.86 ODR -
Sharpness0 100
95 -
0° Barcode0 100
100 -
90° Barcode0 100
95 -
Min. printable character0 6
3 pt -
Graphics0 100
100
Printability
-
Coated paperArt Paper, Art Printing Paper, High Gloss Paper…
-
Synthetic paperSynthetic paper
-
Film labelPP/PET/PE/PVC…
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
-
Braking FluidBosch Dot4 Plus
-
Gasoline92#
-
Alcohol95%
-
Stratch Resistance
-
Rub resistance
- 20
- 70
- 180
- 1000
- 1000
- 1000 200 50
- 50 200 1000 次
-
Water resistance testThe printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
-
No significantly faded
-
Low-temperature testThe printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
-
No significantly fallen off
Recommended Application Scenarios
-
Freezer Label
-
Hot-Processed Label
-
Pharmaceutical Label
-
Medical Device Label
-
Laboratory Label
-
Household & Personal Care Lebel
-
Home Appliances
-
Electronic Component Identification
-
Product Nameplate
-
Machinery and Equipment
-
Chemical Label
-
Automotive Interior Label
-
Engine Hood Label
-
PropertiesPET FilmThickness: 4.5μmRibbonThickness: 7.6±0.3μmInk98±3℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
TDR325
-
TDR320
-
TDR345
-
Substrate CompatibilityAlcohol ResistanceGasoline Resistance
-
