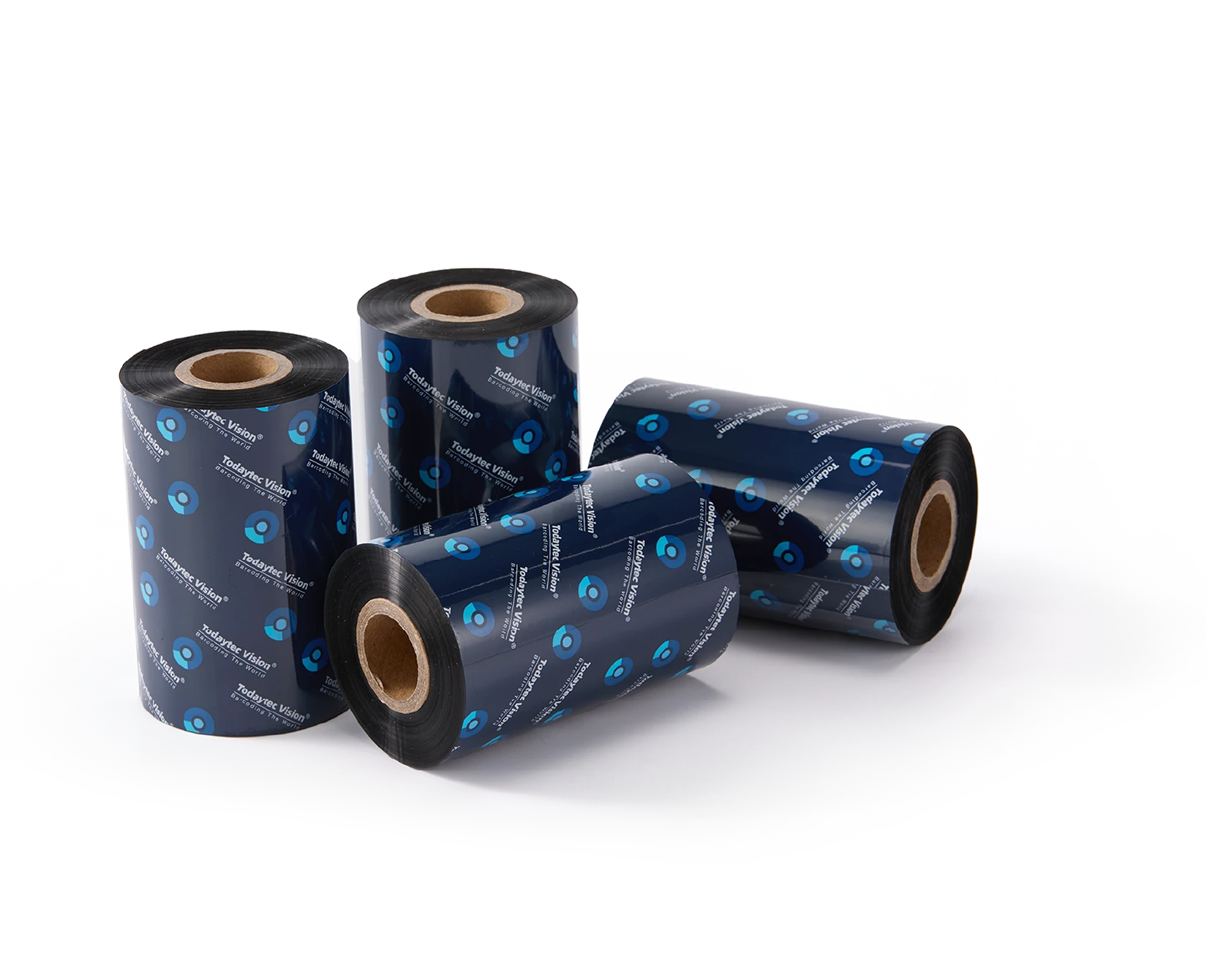

TDR330
Economical Resin Ribbon
TDR330 is an exceptionally cost-effective resin-based thermal transfer ribbon. Its outstanding printability and high sensitivity deliver excellent print results even on coated paper. Additionally, T300 seamlessly integrates with various label types, eliminating the need for frequent product changes and significantly boosting operational efficiency.
-
High Definition
-
High Sensitivity
-
Superb scratch resistance
Print Quality
-
Blackness0.5 2.5
1.69 ODR -
Sharpness0 100
97 -
0° Barcode0 100
100 -
90° Barcode0 100
95 -
Min. printable character0 6
4 pt -
Graphics0 100
97
Printability
-
Uncoated PaperWriting paper, Vellum…
-
Coated PaperArt Paper, Art Printing Paper, High Gloss Paper…
-
Synthetic paperSynthetic paper
-
Film LebelPP/PET/PE/PVC…
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
-
Braking FluidBosch Dot4 Plus
-
Gasoline92#
-
Alcohol95%
-
Stratch Resistance
-
Rub resistance
- 0
- 5
- 55
- 880
- 780
- 900 100 10
- 10 100 900 次
-
Water resistance testThe printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
-
No significantly faded
-
Low-temperature testThe printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
-
No significantly fallen off
Recommended Application Scenarios
-
Freezer Label
-
Hot-Processed Label
-
Pharmaceutical Label
-
Patient Information Label
-
Medical Device Label
-
Household & Personal Care Lebel
-
Home Appliances
-
Industrial Material
-
Machinery and Equipment
-
PropertiesPET FilnThickness: 4.5μmRibbonThickness: 6.9±0.3μmInkColor: Black Melting Point: 80±3°CStorage ConditionTemperature: 5–35°C, Humidity: 20–80% RH environment, Shelf life: 12 months
-
Product Comparison
-
TDR330
-
TDR320
-
TDR325
-
Substrate CompatibilityAlcohol ResistanceGasoline Resistance
-
