Todaytec

TDM665

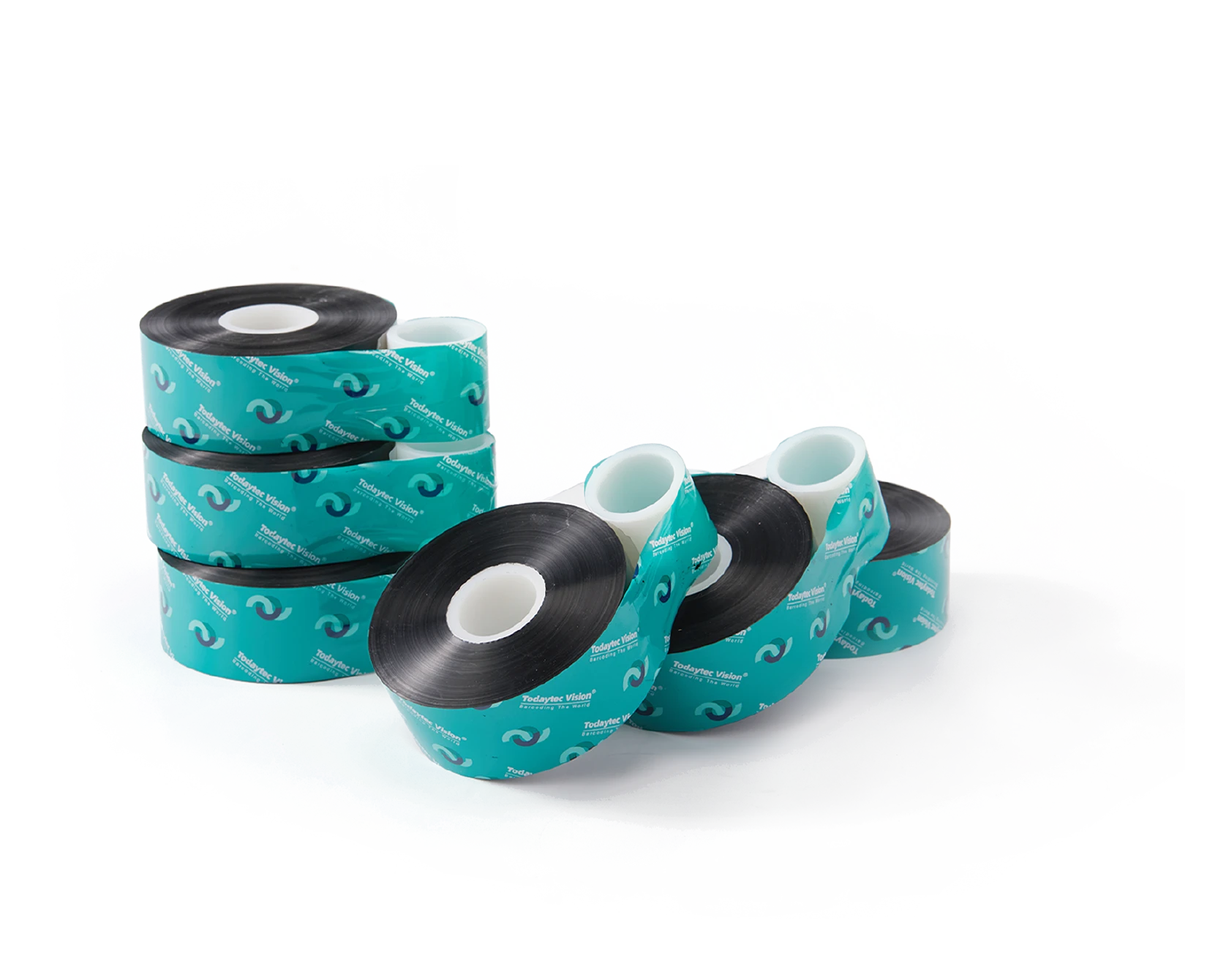

Near Edge Specialized wax-resin ribbon

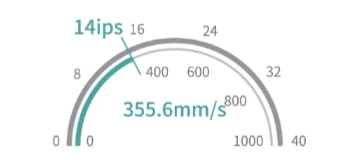

TDM665 is a wax-resin ribbon used by desktop near-edge printers. It has excellent sensitivity and superior substrate compatibility. The fastest printing speed of TDM665 can reach 14 ips (355.6mm/s). Its excellent scratch resistance and reliable print quality make it to be widely praised as soon as it was launched.
  • Superior Scratch Resistance
    Superior Scratch Resistance
  • Superior Substrate Compatibility
    Superior Substrate Compatibility
  • High Speed Printing
    High Speed Printing
  • Excellent Sensitivity
    Excellent Sensitivity
Print Quality
Blackness
0.5
2.5
Todaytec
1.75 ODR
Sharpness
0
100
Todaytec
92
0° Barcode
0
100
Todaytec
100
90° Barcode
0
100
Todaytec
80
Min. printable character
0
6
Todaytec
4 pt
Graphics
0
100
Todaytec
95
Printability
Uncoated paper
Writing paper, Vellum…
Coated paper
Art Paper, Art Printing Paper, High Gloss Paper…
Synthetic paper
Synthetic paper
Film label
PP/PE/BOPP/PA…
Sensitivity
Print Speed
Todaytec
Printing Speed
Todaytec Todaytec Todaytec Todaytec Todaytec Todaytec Todaytec Todaytec Todaytec
Durability Test
Physical Resistance
Slight exposure begins after approx, X cycles with a 680G weight load
Todaytec
Todaytec Todaytec Todaytec Todaytec Todaytec
  • Braking Fluid
    Bosch Dot4 Plus
  • Gasoline
    92#
  • Alcohol
    95%
  • Stratch Resistance
  • Rub resistance
  • 0
  • 0
  • 0
  • 280
  • 300
300 200 100
100 200 300 次
Water resistance test
The printed label was soaked inwater at 100℃ for 2 hours and then check whether the imprint of thelabel was significantly faded.
Todaytec
No significantly faded
Low-temperature test
The printed label was placed in a closed cold box at -17°C for 20 hoursand then check whether the imprint of the label was significantly fallen off.
Todaytec
No significantly fallen off
Certification and Permits
Todaytec
ROHS2.0
Todaytec
REACH
Todaytec
MSDS
Todaytec
Halogen Free
Same Series Products
Recommended Application Scenarios
  • Todaytec
  • Todaytec
  • Todaytec
  • Todaytec
  • Todaytec
  • Todaytec
  • Todaytec
Properties
PET Film
Thickness: 4.5μm
Ribbon
Thickness: 6.3±0.3μm
Ink
78±3℃
Storage Condition
Temperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
Product Comparison
Todaytec
  • TDM665
    Todaytec
    Todaytec
    Todaytec
  • TDM669
    Todaytec
    Todaytec
    Todaytec
  • Substrate Compatibility
    Durability
    High-speed Printing Performance
