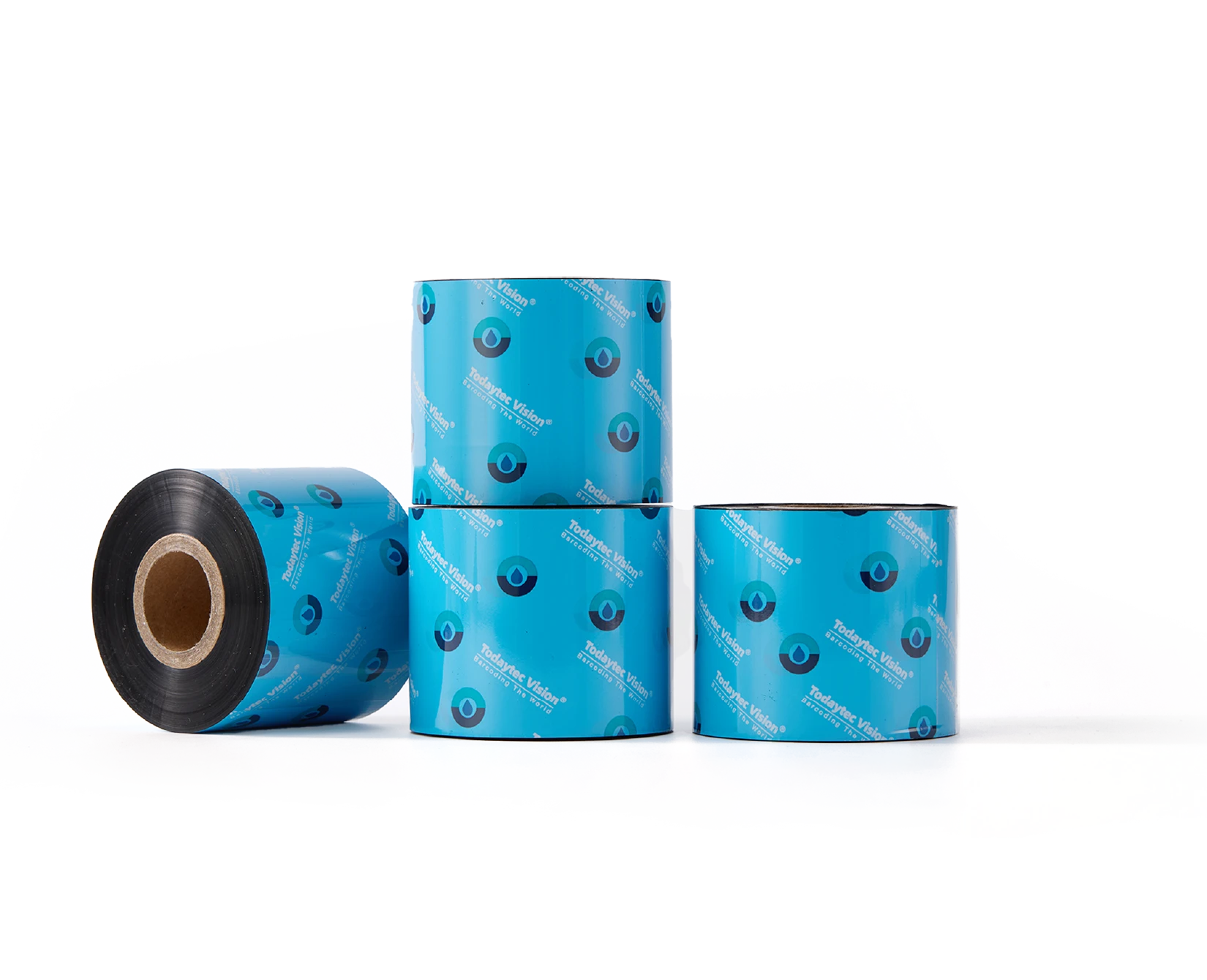

TDR370P
High Efficiency Economical Wash Care Ribbon
TDR370P, as a cost-effective wash care label ribbon. It is developed with lower printing temperature, excellent washing and dry-cleaning resistance, and a certain extent of sand washing resistance. It can be widely used in the areas such as home and textile clothing labels, luggage tag and shoe tags.
-
Superior Substrate Compatibility
-
Superior Wash & Dry-Cleaning Resistance
-
Excellent Ironing Resistance
Print Quality
-
Blackness0.5 2.5
1.68 ODR -
Sharpness0 100
90 -
0° Barcode0 100
90 -
Min. printable character0 6
5 pt -
Graphics0 100
95
Printability
-
Nylon
-
Satin
-
TPU
Sensitivity
-
Print Speed
-
Printing Speed
Durability Test
-
Washing resistancePlacing the printed label in a washingmachine with 4‰ soapy water at 40℃ for 30 minutes. Observingits print attenuation: OK
-
OK
-
Dry-cleaning resistanceDry-cleaning resistance Placing the printed label in a washingmachine with CCl₄ solution at 40℃ for 30 minutes. Observing its print attenuation: OK
-
OK
-
lroning testPlacing the printed label under steam iron machine 150℃ for 5 second. Observing its print attenuation: OK
-
OK
Recommended Application Scenarios
-
Tongue Lebel
-
PropertiesPET FilmThickness: 4.5μmRibbonThickness: 6.1±0.3μmInk115±5℃Storage ConditionTemperature: 5~35℃, Humidity: 20~80%, Validity Period: 12 months
-
Product Comparison
-
TDR370P
-
TDR380
-
TDR382
-
Substrate CompatibilityWashing ResistanceIroning Resistance
-
